Kohshin Product list

Instructions For Use Characteristic Product Visual

OPEN LOOP SYSTEM <BOLT ON TYPE>

Photo Model Amps PDF

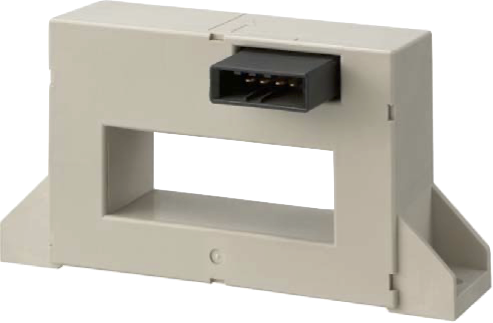

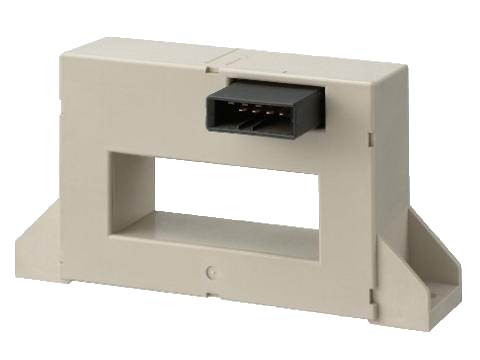

HC-MJ 1000 - 4000

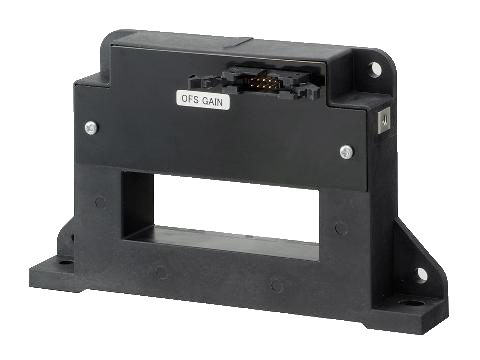

HC-L 800 - 3000

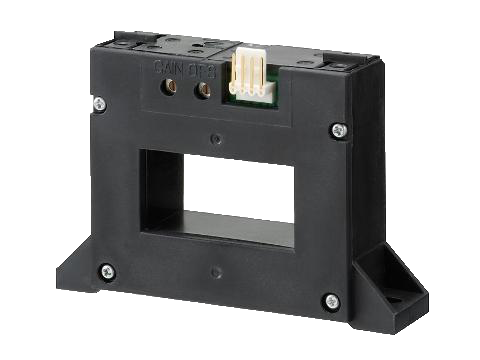

HC-ML 300 - 3000

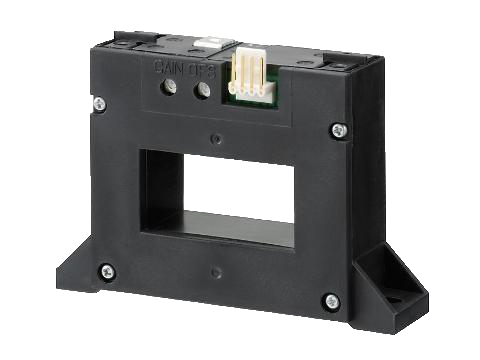

HC-MN 300 - 3000

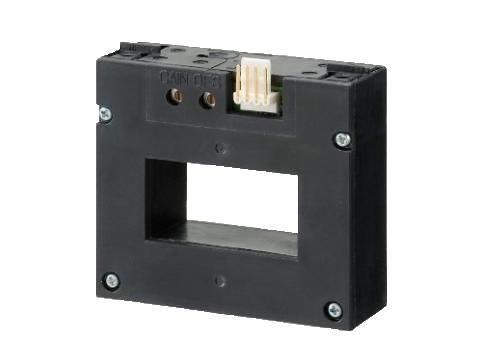

HC-MSL 300 - 3000

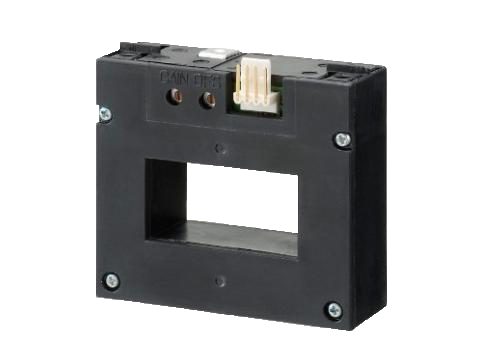

HC-MSN 300 - 3000

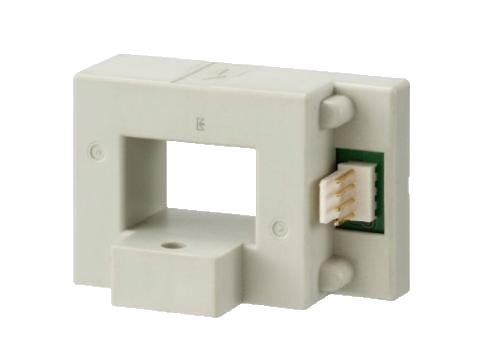

HC-TF 50 - 1600

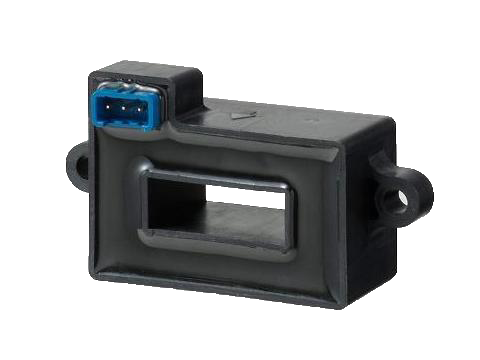

HC-TTA 300 - 900

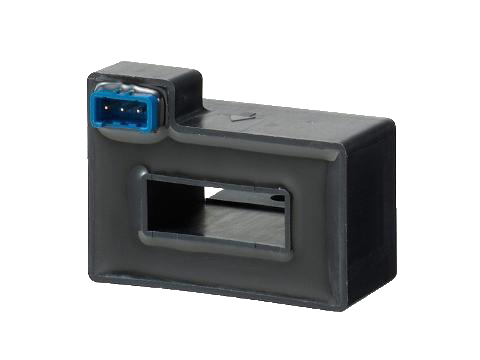

HC-TTB 300 - 900
HC-SL 50 - 800

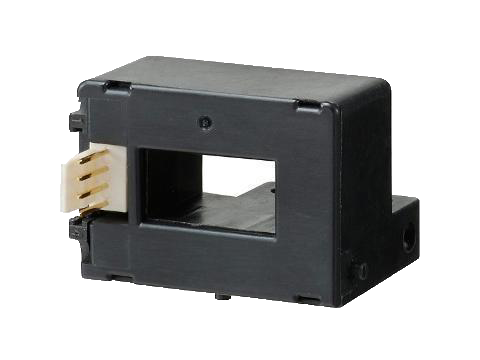

HC-SN 50 - 800

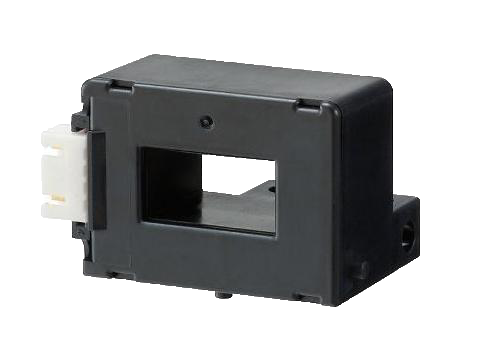

HC-TN 50 - 800
HC-TS 50 - 800

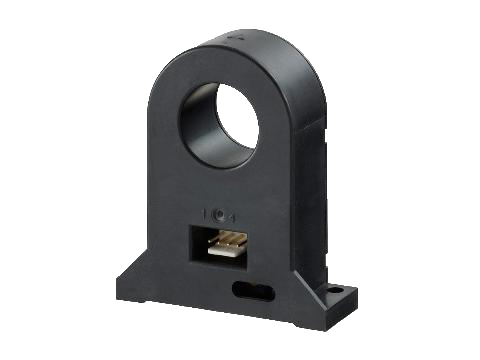

HC-U 50 - 300
HC-UC 2.5 - 25

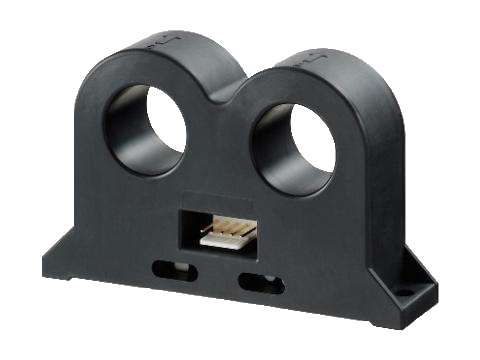

HC-W 50 - 300

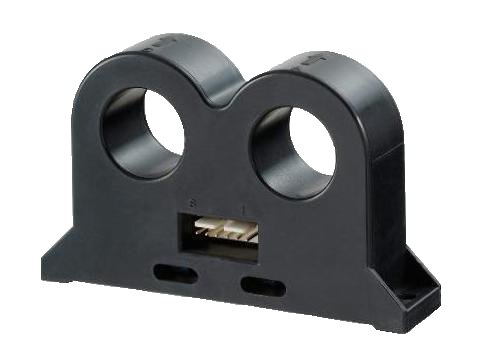

HC-WT 50 - 300

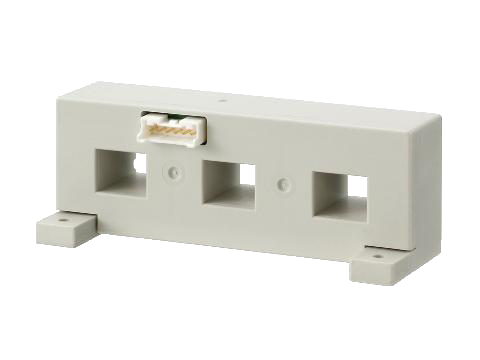

HC-VT 50 - 300

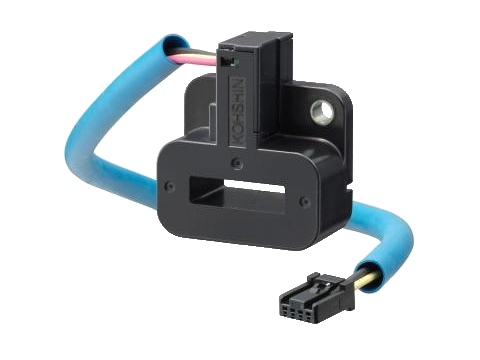

HC-ASA 200 - 800
HC-ASB 200 - 800

OPEN LOOP SYSTEM <PCB MOUNTING TYPE>

Photo Model Amps PDF

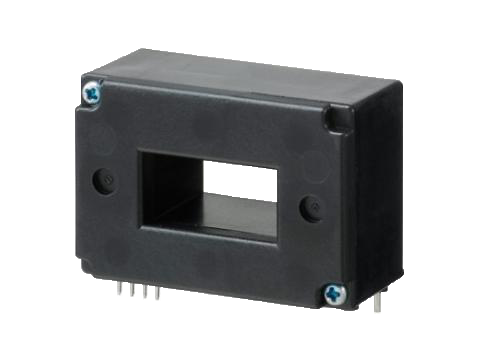

HC-PZ 50 - 800

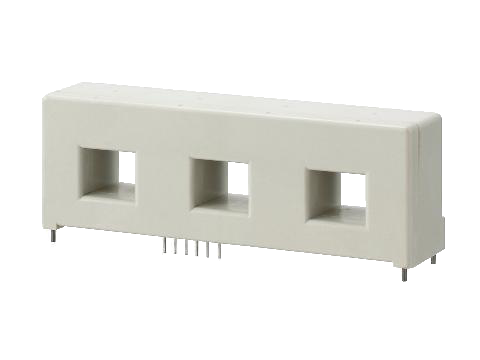

HC-PT 50 - 300
HC-PTW 50 - 300

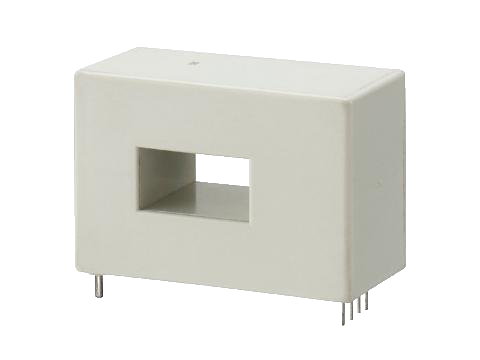

HC-PG 50 - 300

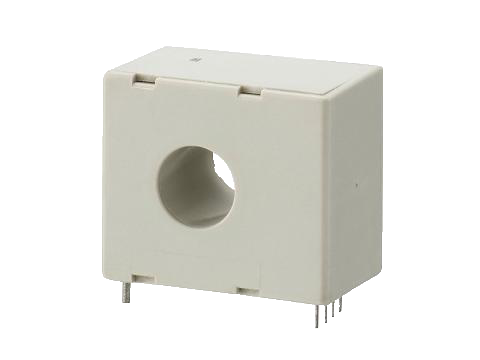

HC-PJ 50 - 200

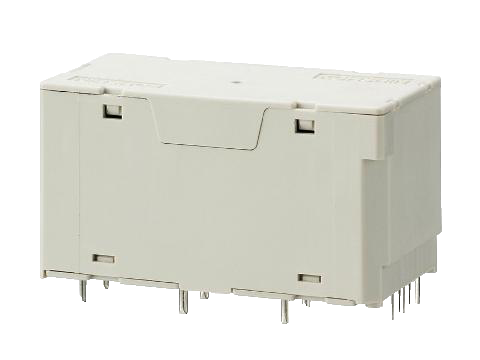

HC-PVT 10 - 50

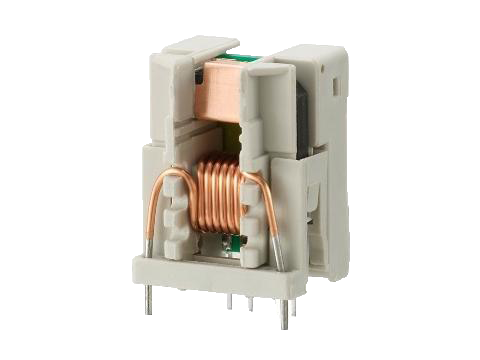

HC-PSG 1 - 50

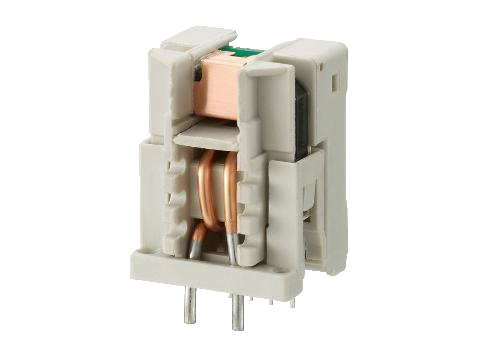

HC-PSE 5 - 50

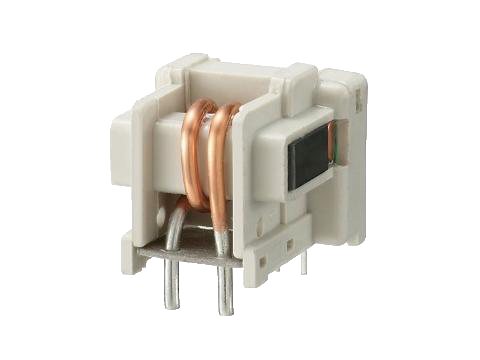

HC-PD 5 - 50

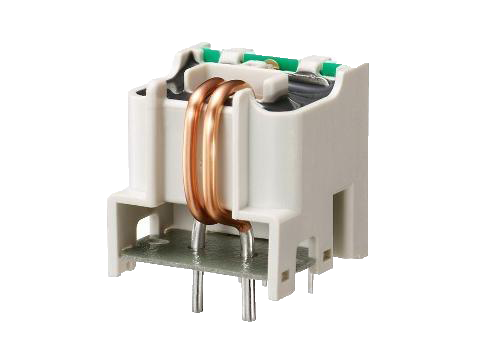

HC-PDG 5 - 50

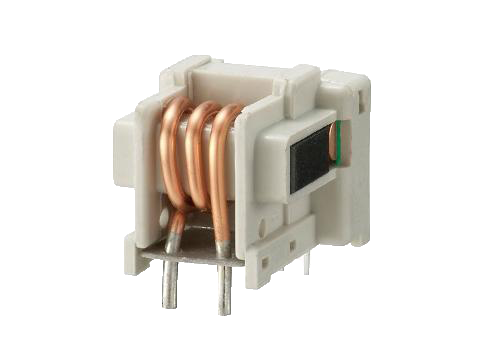

HC-PDN 5 - 50
HC-PDA 5 - 50

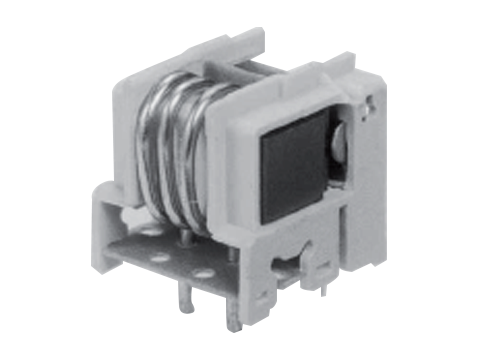

HC-PAE 5 - 50

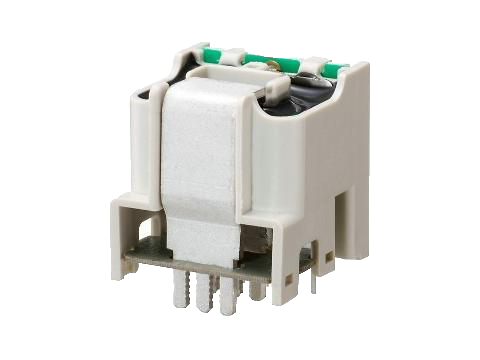

HC-PDK 50 - 100

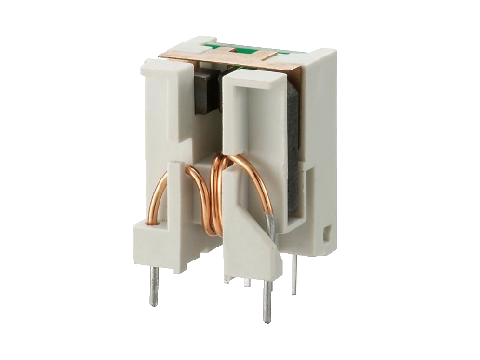

HC-PL 5 - 30

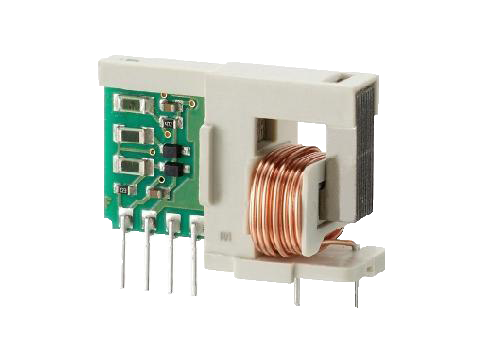

HC-PFG 3 - 30

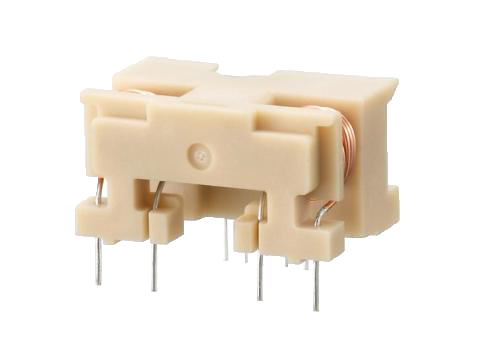

HC-PRC 3 - 20

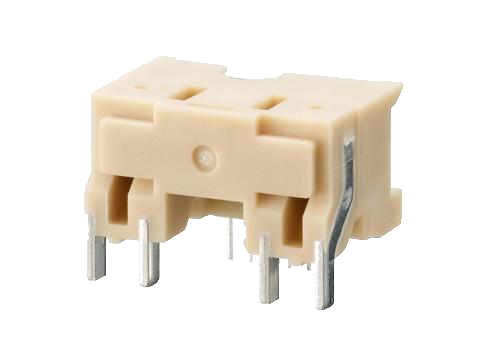

HC-PRD 25 - 50
HC-PRZ (obsolete) 3 - 20
HC-PRX (obsolete) 25 - 50
HC-PRA (obsolete) 3 - 20
HC-PRB (obsolete) 25 - 50

CLOSED LOOP SYSTEM

Photo Model Amps PDF

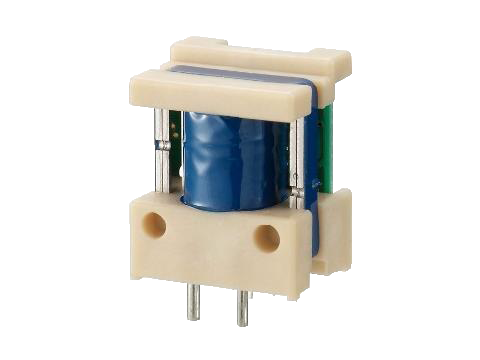

HS-PHA 5 - 30

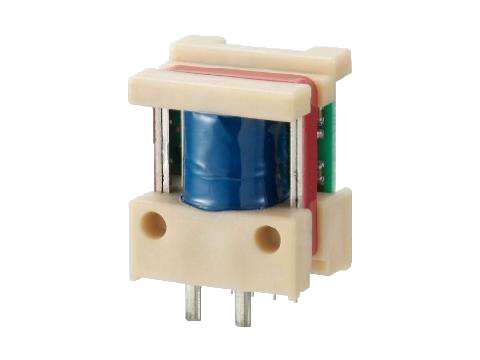

HS-PHB 35 - 50

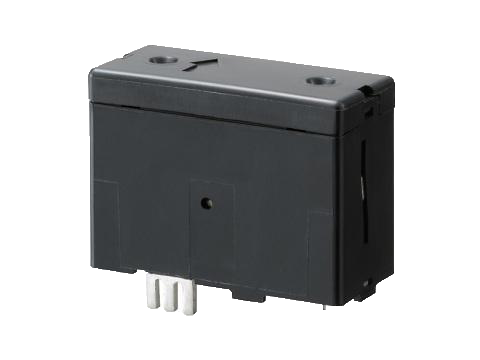

HS-PKF 50 - 100

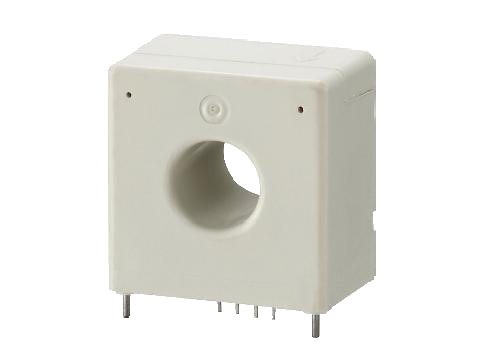

HS-P 50 - 100

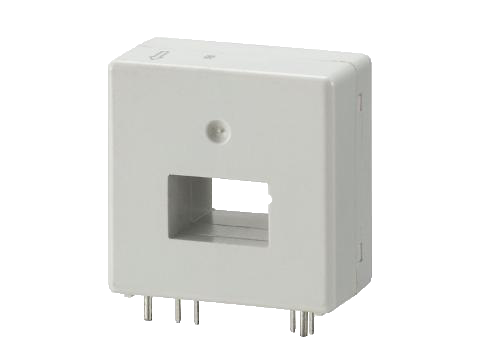

HS-PKD 50 - 150

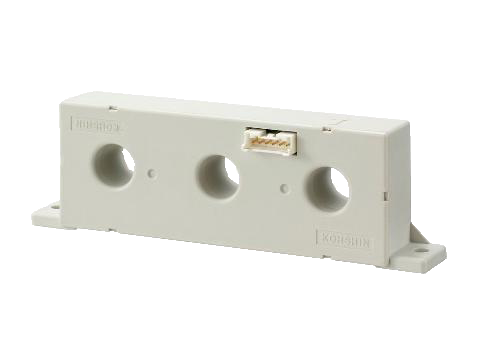

HS-PTF 50 - 100

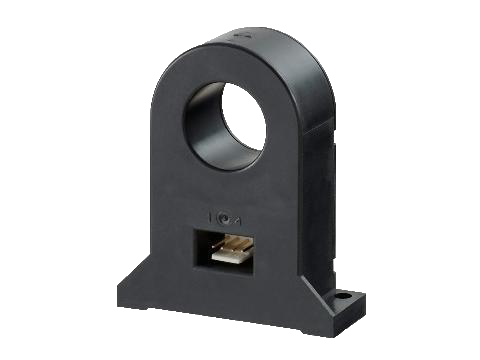

HS-U 50 - 300

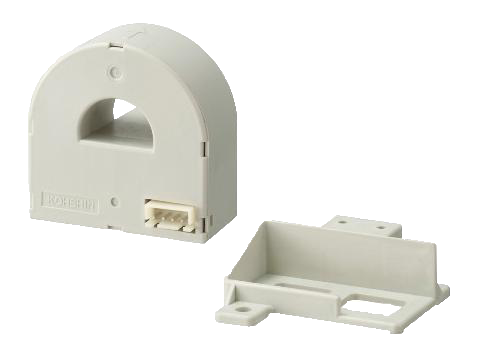

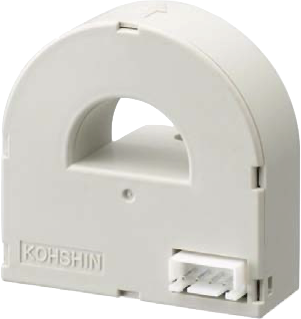

HS-UF 100 - 300

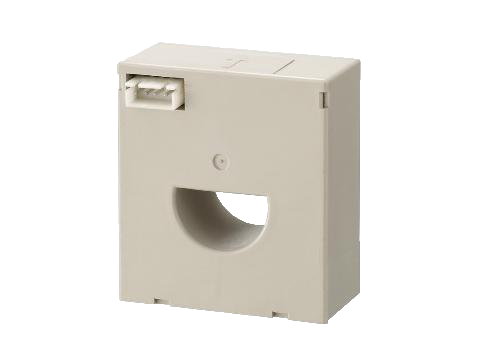

HS-UD 300 - 500

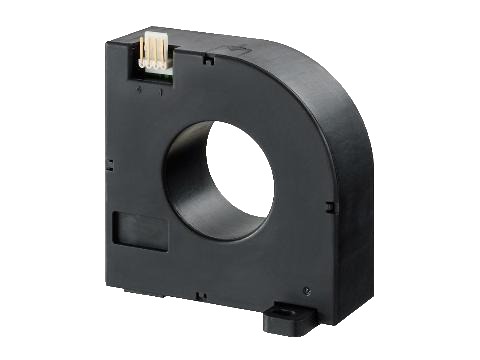

HS-K 300 - 500

DIGITAL SENSOR

Photo Model Amps PDF

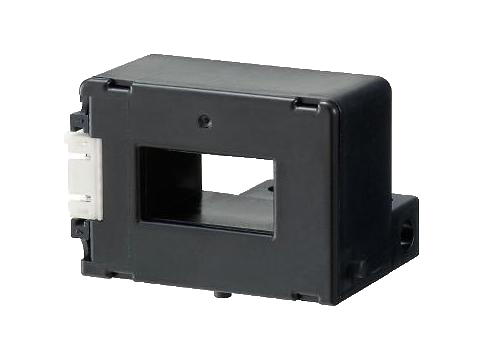

HD-TS 100 - 600

OPEN LOOP SYSTEM <HALL IC TYPE>

Photo Model Amps PDF

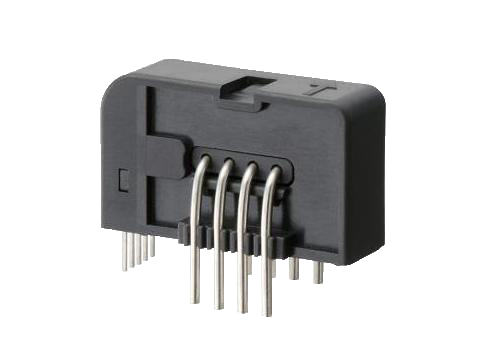

HP-PU 5 - 100

MAGNETIC COIL TYPE

Photo Model Amps PDF
HM-A 300 - 600

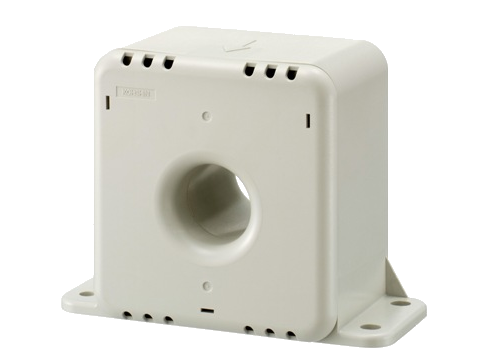

HM-B 300 - 600

FLUX GATE SENSOR

Photo Model Amps PDF

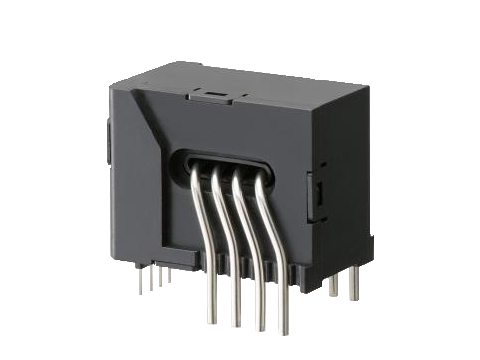

HF-A 6 - 50

CLAMP TYPE AC-CT

Photo Model Amps PDF

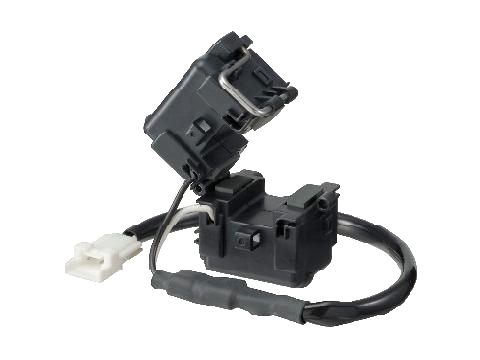

HA-A 5 - 5
HA-B 50 - 250

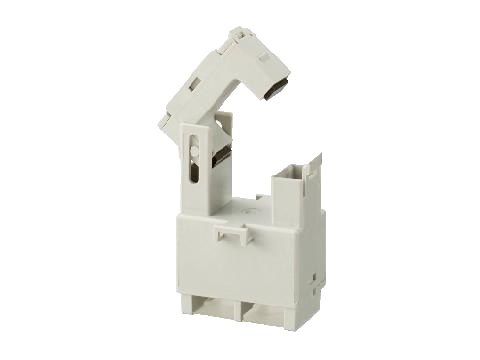

HA-C 50 - 250
HA-BV 50 - 250

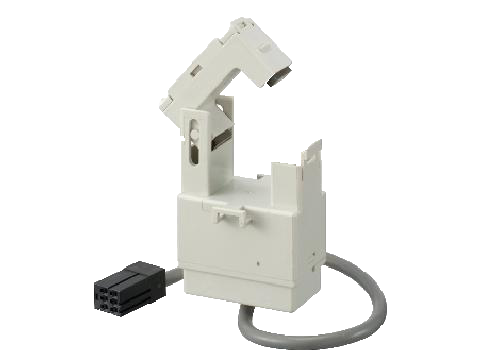

HA-CV 50 - 250

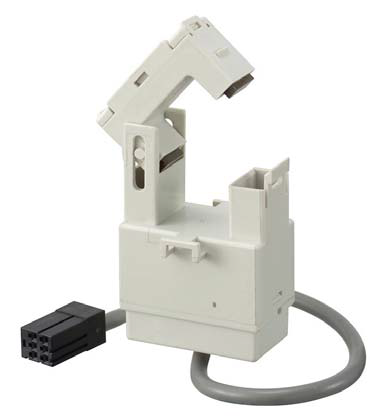

HA-BR 50 - 100

Specifications subject to change. Contact us for consultation before completing your design.

Adobe Reader required to view PDF documents.
